Charl Schwartzel’s drilled-out Miura irons: A builder’s perspective
We see plenty of cavity back irons on the PGA Tour. Most of these irons have been strategically designed to position weight and center of gravity to maximize performance. Spotted this week at the AT&T Pebble Beach Pro-Am: a nonconventional set of “cavity backs” in the form of Charl Schwartzel’s drilled-out Miura MB-001 blade irons.
As first reported by Golf.com’s Andrew Tursky, Charl, an equipment free-agent, bought the irons online, and after tinkering with them (obviously, Charl is a true gear nut), he felt the irons were just a bit too heavy at D6 swing weight and wanted to bring them down to around D3. These number will seem quite arbitrary to some, so to help explain swing weight, we have a short video below
Now, the question comes down to why would he drill out the irons instead of just having the clubs built to his desired spec?
In the case of Miura irons, a company founded in Japan. The iron head weights are heavier than others on the market because Japan spec irons are generally built to shorter lengths than their North American counterparts. The clubheads are noticeably heavier in the shorter irons and wedges (see chart below), which is why we see more holes in the pitching wedge vs. the longer irons.

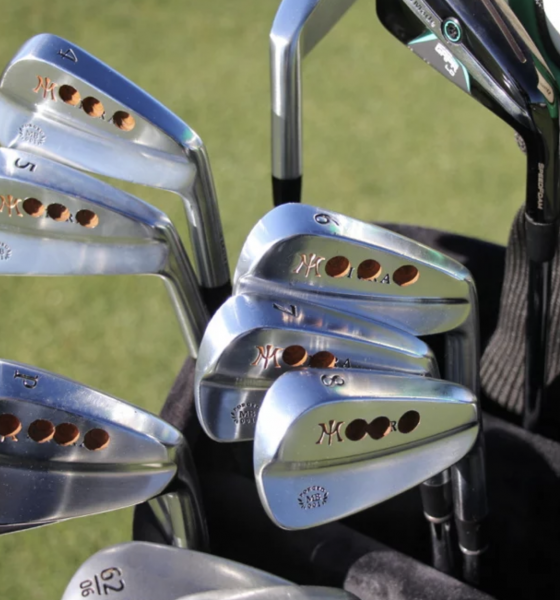

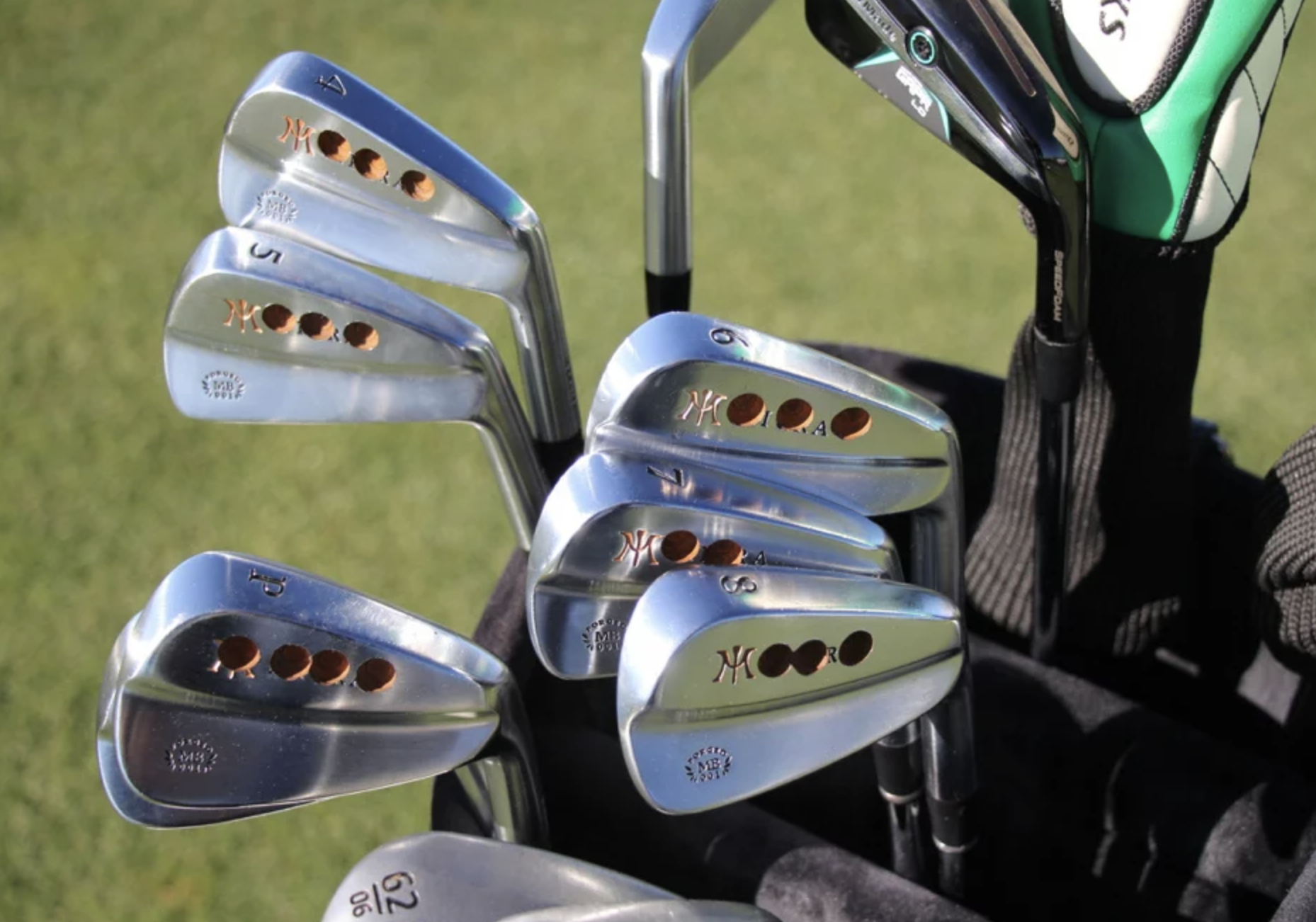

Since the MB-001’s are a solid muscle design with no badges or weight ports in the head, there is no other way to remove the mass needed to hit a lighter swing weight for Charl—unless Miura was to produce a set heads at a lighter weights by grinding off mass during the final production steps before final finishing.
Head weight specs 3-PW starting at 245g at the 3-iron.
As a result, when built with heavier tour weight shafts (anything 110g or above) and at a standard North American length (37″ – 7 iron, or longer), the clubs will end up being heavier than what would be considered standard swing weight (usually between D1-D4). Let me please point out that in the golf club manufacturing world there are very few standard practices or measurements beyond the USGA ruler and swing weight scale. Although the phrase “standard clubs” is still common nomenclature, it applies very little to the custom club building world.
Beyond adding mass to the grip end of the club to counteract the heavier weight of the heads, a practice known as counterbalancing, the only other option is to drill mass out of the clubhead (see full video above for further explanation). Charl reportedly did the drilling himself when fine-tuning the clubs and after a few holes got them right where he likes them.
Based on the thickness of the iron muscle and the amount of mass removed from each head (roughly six grams), these holes have no effect on the performance of the irons (but have probably killed any potential resale value on the open market—bearing in mind that last part is tongue in cheek). If Charl wins another major with these, who knows what they would be worth.
Other examples
This process of drilling out mass has also been referred to as “porting,” and club builders have been doing it for a long time. In the case of wedges, porting not only helps reduce clubhead weight, but can also help (in a very, very small way) remove mass from lower in the head to raise the CG. It’s the exact reason Callaway introduced this design feature in the original PM Grind and continues with the design philosophy today in the JAWS MD5.
With Bryson’s wedges being more than 1″ over standard length, weight had to be removed from the head.
We don’t recommend you start drilling holes in your irons and wedges just yet and suggest seeing a professional club builder to help you sort out your specs and get you dialed in. For more pictures of the clubs Charl Schwartzel is using this week, head to the GolfWRX forum: Charl Schwartzel – WITB 2020 AT&T Pebble Beach
