Golf and winter don’t get along very well, which is why so many golfers head indoors to practice facilities that offer year-round climate-controlled environments. The problem for many is these facilities can be busy and often require booking well in advance, which doesn’t work well for those seeking last-minute “driving range” flexibility.

So what is a diehard golfer to do? Build your own home hitting bay/simulator of course, and in my case build it on a budget to offer fun and flexibility all winter long.

Finding the right space

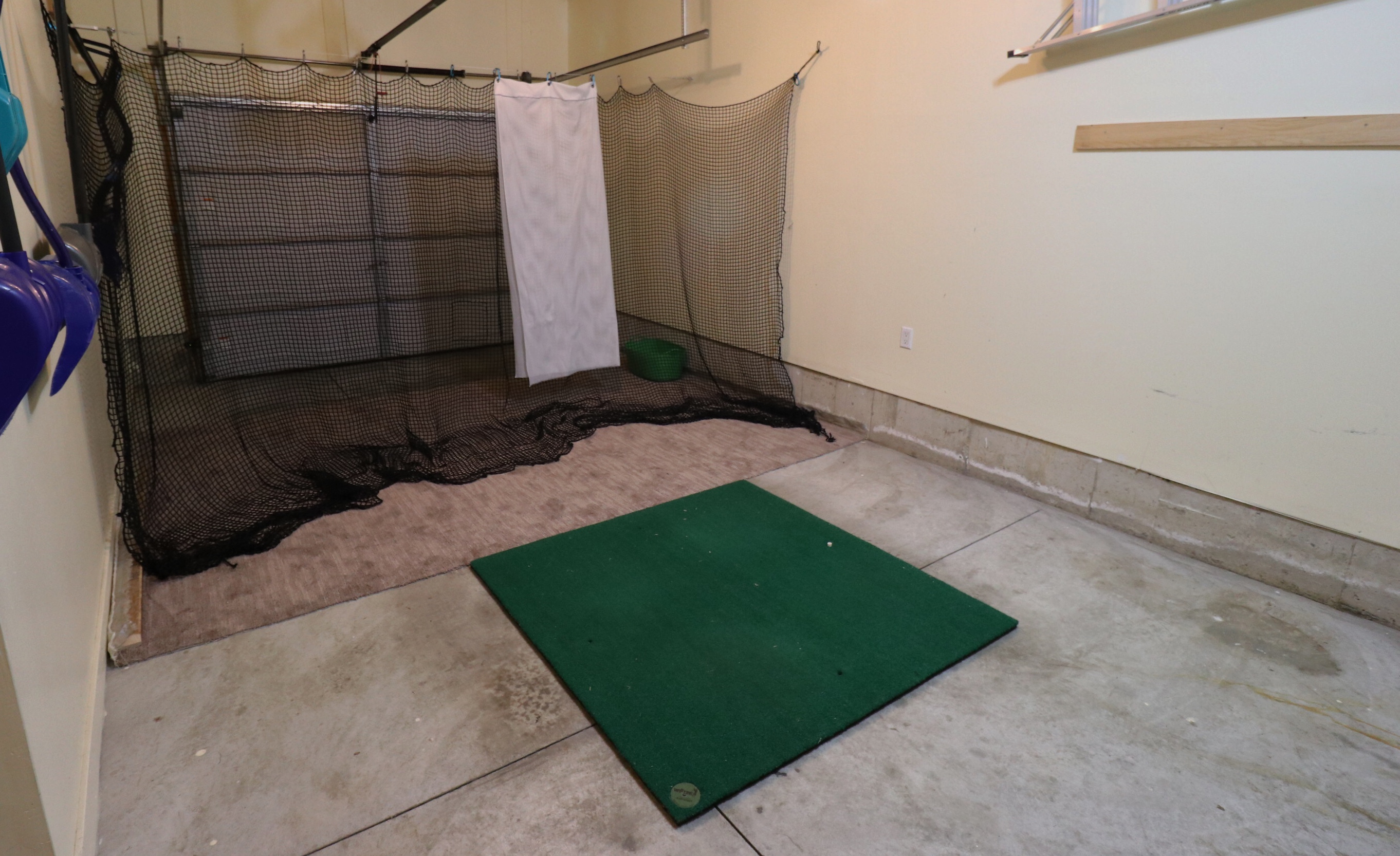

The first part of the process is accessing your wants and needs along with understanding any possible limitations your space might create. You have to consider which clubs you plan on using—and if that means hitting drivers, then you are going to need enough height and width to feel comfortable. The space I used is our garage, which is 12 feet wide and has 11-foot high ceilings, more than enough room to hit any club in the bag, and can easily accommodate both right and left-handed golfers.

Golf net and screen options

The Net Return hitting net

After figuring out your space, it comes down to selecting the best option for ease of use and flexibility—flexibility being the key ingredient in my situation. This is our only full garage bay, and if there is one thing I have gotten used to, it’s not having to clean snow off our car in the winter, so the net and mat had to be easily portable and storable.

If you are repurposing a space that won’t require flexibility, then there are a number of fantastic options including The Net Return and others that provide projector screen capability. On the highest-end, before getting into a full room renovation, Costco has a $20,000 “Sim in a box” powered by a Foresight GCQuad—let’s call this the dream scenario.

Since I have no intention of using a projector, nor do I have $20,000 just lying around, I ended up going with standard golf impact netting from Amazon: 10′ x 20′ golf impact netting, which allowed me to build my own net system which I can open or store within minutes.

The last thing to remember is you will be putting a lot of wear on a small part of the net caused by proximity, which is why if you plan to practice a lot it’s important to reinforce the impact area of the net. There is nothing more dangerous or damaging than a rubber projectile (in our case a golf ball) ricocheting around a small space at over 140 mph.

My solution was fine mesh netting from a local fabric store. It’s light enough not to put extra stress on the suspended cable supporting the net but strong enough to take a lot of abuse. The nice thing is at only $5 per yard and 60″, wide it’s very affordable and easily replaceable. An interesting thing to note, is a net doesn’t wear out specifically from just high-speed impact but from the friction of the spinning ball as it hits the net with shorter clubs, so the more layers the better.

The parts list

The list will vary depending on your situation and personal setup, but here are the tools & supplies I used when putting together my own net system.

Tools

• Power drill and/or impact driver to drill pilot holes for the anchoring i-bolts. Since there will be a lot of tension on the supporting cable you have to be sure to put these anchors into wall studs.
• Stud finder
• Various size drill bits
• Level
• Tape measure
• Screwdrivers
• Pliers or vice grips

Supplies

There are a lot of ways to secure the net and create a welcoming space to use as a practice facility but these are all the supplies I used to install and support the net.

• Stainless steel aircraft cable (2mm) rated for 900lbs.
• Aircraft cable clamps
• I-bolts to secure the cable to walls
• Turnbuckle to properly tension the cable
• Small hooks to hold the corners of the net up and around
• Carabiners – Climbing rated ones are unnecessary, but they need to be sturdy
• Carpet (for noise dampening and to prevent balls hitting the floor after falling from the net)

The Mat

Beyond the net itself, this is by far the most important piece of any home hitting bay or simulator because it needs to have enough give/compression in the impact area to not cause joint or muscle pain when hitting irons and wedge. This could require you to use extra padding under the mat or purchasing a separate hitting area depending on the base it is on.

Note: At the time of publication, I am currently waiting for the soft hitting area of my mat to arrive

Getting fancy and simulated

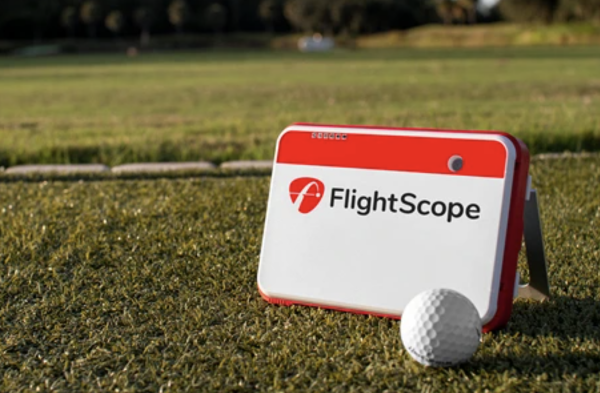

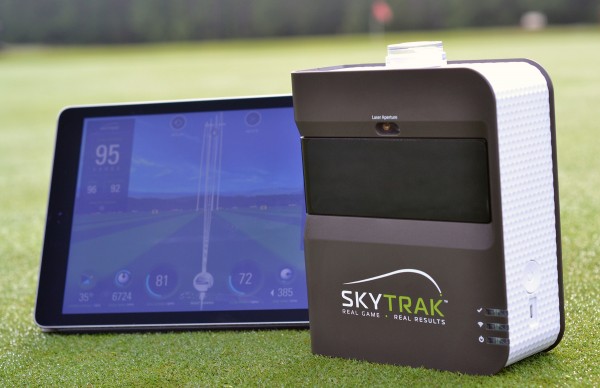

This is the part where we go from home hobby setup to full-blown golf nut practice facility. The options beyond a basic net setup can get pretty crazy and for data and shot information it will require a substantial investment, with the most affordable being a SkyTrak unit followed by the all-new FlightScope Mevo+. After that, we get into more expensive options like the Foresight GC2 with HMT or the newest option the GCQuad followed by the radar-based Trackman.

All of these systems can work alongside various simulator software to provide playable course options, but they all come at an additional cost depending on the company and package.

For my personal use, I already happen to own a FlightScope Xi+ (which I purchased used), which requires a minimum of 16′ from unit to net to capture data, and since I don’t have any plans for playing rounds of golf, it is the perfect solution for getting the information I want in the space I have.

So whether you are looking for a full-blown golf simulator at home or just a space to help you keep those “golf muscles” loose over the cold winter months, use this GolfWRX how-to guide as a starting point for finding the best solution for you.
