The Wedge Guy: Understanding CG

Published

on

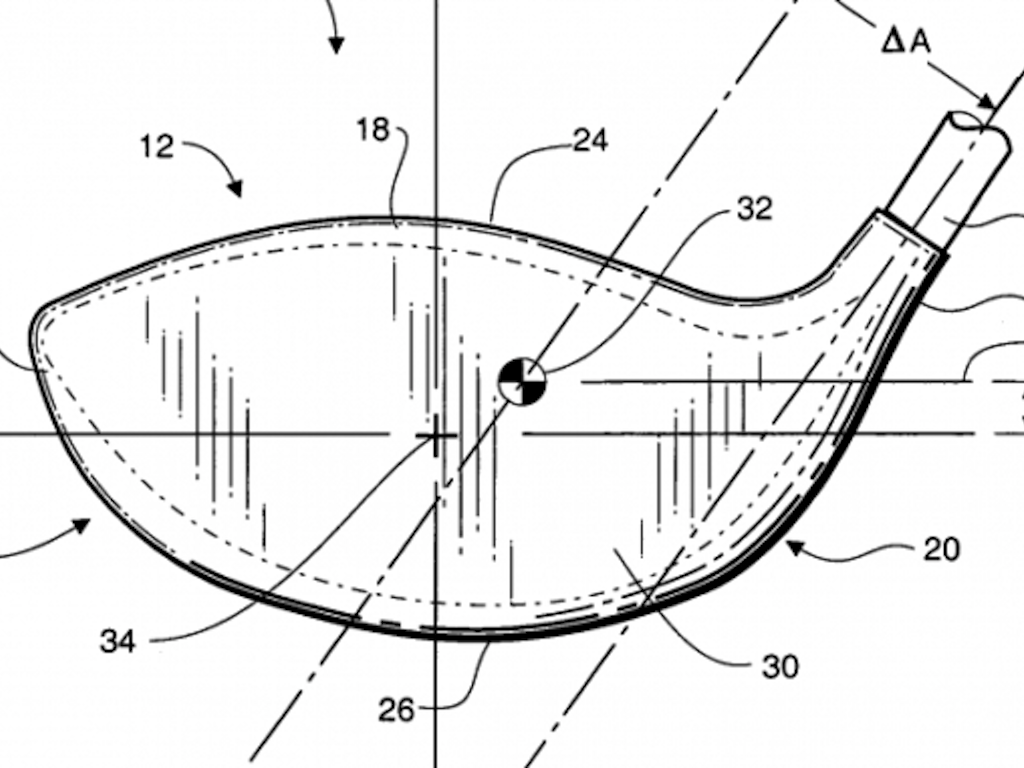

One of the most misunderstood concepts involved in golf club design is that of “CG,” or “center of gravity,” also “center of mass.” While this particular measurement of any golf club head can certainly offer insight into its probable performance, it is not the “be all, end all” with regard to any club’s specific launch or forgiveness attributes.

What “CG” specifically refers to is the exact center location of a club’s distribution of mass, which will generally coincide with that club’s “sweet spot”—but that’s not always true. There are lots of ways to manipulate or manage any club’s exact CG location, and therein lies a “Pandora’s Box” of misunderstanding.

Let’s start back in the very old days, when irons were single pieces of forged steel and woods were made of persimmon. Since there was no science inside the club, CG was essentially a result of how the clubhead is formed—its essential shape.

A typical persimmon driver head, for example, was sized to deliver its ideal weight without any additional weights added. The solid block of persimmon, with some kind of face insert and an aluminum soleplate was all you had to work with. So, the CG was located pretty close to the center of the clubhead from all three axes – vertical, front-go-back and heel-to-toe. If you remember, persimmon fairway woods were smaller and had a brass sole plate to add mass lower in the head and often a lead weight under the sole plate to move the CG even lower to help produce higher ball flights on shots hit from the turf, rather than off a tee.

Traditional forged irons up to the 1960s-70s typically had a CG very close to the hosel, a result of the mass of the hosel itself and the typical design that put “muscle” behind the impact area, and very little mass out toward the toe. An examination of worn faces on those old irons would reveal the wear very much toward the heel. I distinctly remember fighting the shanks back in those days, and that ugly shot usually felt very close to a perfectly struck one, rather than feeling as awful as it looked.

As metal woods and cavity-back irons became the norm, designers were able to move the CG ever lower in order to produce higher ball flight, and more toward the center of the face to put the CG further from the hosel. As technology has continued to be refined, the use of tungsten inserts has further allowed designers to position the CG exactly where they want it – typically lower in the club and more toward the center or even the toe of the golf club.

And therein lies a problem with pushing this insert technology too far.

There is no question that in addition to making contact somewhere close to the CG of the clubhead, ball performance is also a product of how much mass is directly behind the impact point. Let me offer this example of how important that can be.

Let’s assume two identically shaped cavity-back 7-irons – same size, face thickness, overall weight and a design that places the CG in the exact same spot in the scoring pattern. The only difference between the two is that one is a single piece forged or cast steel head, with the other being cast of aluminum, with heavy tungsten inserts in the hosel and toe areas to achieve the same overall weight and CG location.
Which do you think would deliver the more solid feel of impact and better transfer of energy to the ball?

Now, we could take that even further by cutting out the entire center of both clubheads and increase the mass or the weight of tungsten in the hosel and toe to bring each back up to weight. The CG location would not change, but there would be absolutely no mass at all where the ball impact location would be. That would not work at all, would it?

I’ve learned long ago that it’s not just about the location of the CG that makes a golf club perform, but also the amount of mass that is placed directly behind the spot on the face where impact with the ball is made.

Here’s a fun, “non-golf” way to embrace this concept.

Suppose we had a two-pound sledgehammer and another 2 lb piece of steel hammered into a large circular sheet 1/16” thick. And then suppose someone hit you on the head with the exact CG of each one – which do you think would hurt the most?

Terry Koehler is a fourth generation Texan and a graduate of Texas A&M University. Over his 40-year career in the golf industry, he has created over 100 putter designs and dozens of wedges. In 2014, he put together the team that reintroduced the Ben Hogan brand to the golf equipment industry with his TK 15 wedges and Ft. Worth 15 iron designs. Since receiving a U.S. Patent for his “Koehler Sole” in the early 1990s, he has been challenging “conventional wisdom” in the wedge category. In addition to inspiring multiple companies to emulate this sole technology, the performance of his wedge designs have stimulated all other companies to reposition some mass toward the top of the blade in their wedges. Terry is retired from his role as Chairman and Director of Innovation for Edison Golf, and remains active in the industry as an independent designer and consultant.  But his most compelling work is in the wedge category. Since he first patented his “Koehler Sole” in the early 1990s, he has been challenging “conventional wisdom” reflected in ‘tour design’ wedges. The performance of his wedge designs have stimulated other companies to move slightly more mass toward the top of the blade in their wedges, but none approach the dramatic design of his Edison Forged wedges, which have been robotically proven to significantly raise the bar for wedge performance. Terry serves as Chairman and Director of Innovation for Edison Golf – check it out at www.EdisonWedges.com.

8 Comments

8 Comments

  1. Reid Thompson

    Mar 4, 2021 at 12:51 pm

    I was kind of looking for if low CG creates low spin or the opposite.

    • Terry Koehler

      Mar 7, 2021 at 2:50 pm

      A low CG will tend to reduce spin and elevate ball flight.

  2. Jon

    Mar 4, 2021 at 7:19 am

    You’re correct… I believe they’ve gone from extreme perimeter weighting , thinking forgiveness to understanding that if you create more back spin with a lower center of gravity, you create less side spin. .. Therefore, more forgiveness than perimeter weighting.

  3. Martien Schwencke

    Mar 4, 2021 at 6:45 am

    The point of percusion is not always where the centre of grafety is.
    A good desined club the point of percusion is locaed in the middel of the face.

  4. T Carter

    Mar 3, 2021 at 1:12 pm

    Not saying any of these comparisons are wrong, they are just not porportional to the game of golf. Another comparison you could make is pounding fence posts. You could use a sledge hammer to hit the top of a post or you could use a post pounder which provides consistent results due to innovative shaping of metal. A sledge hammer could be more effective in the use of very skilled hands, but the pounder is much much much more user friendly and even professionals use them too for consistency.

    Also keep in mind that we are swinging golf clubs at a very high speed and everyone could use some forgiveness even though a perfect shot may not perform like a perfect shot with blades.

  5. Joe

    Mar 3, 2021 at 11:00 am

    The last comment in this article proves this guy has no understanding of engineering. This literally just reads like a marketing piece to explain why his wedges are better.

    • Raj lp

      Mar 3, 2021 at 11:12 am

      Care to explain?

    • Engineer

      Mar 3, 2021 at 5:39 pm

      Agree. This makes no sense. If that 1/16″ thick metal hit you in the back of the head it would feel the same, except that the metal flexes and the load is distributed. Look at track man if you think there’s some kind of difference. Track man doesn’t ask you if you’re playing a cavity back iron or a muscle back blade. It simply says, path + face angle = ball flight.

      Very little of this article is about cg.
